General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | GVSUPS50K150HS |
| Manufacturer Website Address | |
| Brand Name | Schneider Electric |
| Product Line | Galaxy VS |

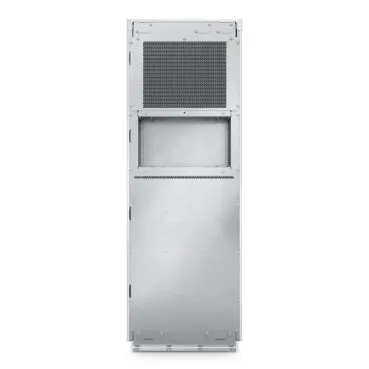

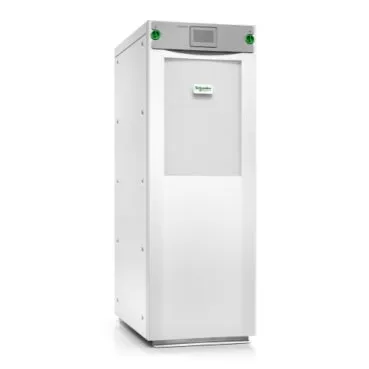

| Product Name | Galaxy VS 50KVA Tower UPS |
| Marketing Information | Highly efficient, easy-to-deploy 50kW scalable to 150 kW, 400V 3-phase UPS for external batteries that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service. |
| Packaged Quantity | 1 Pack |
| Product Type | Double Conversion Online UPS |
Technical Information
| Phase | Three Phase |
| Application/Usage |
|
Power Description
| Load Capacity (VA) | 50 kVA |
| Load Capacity (Watt) | 50 kW |
| Input Voltage |
|
| Input Voltage Range | 340 V AC - 460 V AC |
| Output Voltage | 400 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
Display & Graphics
| Display | LCD |
Interfaces/Ports
| USB (HID Compliant) Port | No |
Battery Information
| DC System Voltage | 576 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 0 J |
Environmental Conditions
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 1.01 km |
| Storage Relative Humidity | 10% - 80% |
| Sound Emission (A-Weighted) | 68 dB(A) |
| Thermal Dissipation | 5804 BTU/h |
Physical Characteristics
| Product Color | White |
| Form Factor | Tower |
| Height | 1485 mm |
| Width | 521 mm |
| Depth | 847 mm |
| Weight (Approximate) | 290 kg |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | Green Premium |
Warranty
| Limited Warranty | 1 Year |
