SPECIFICATIONS

Brand Name: QIYIDA

Chipset: Intel X99

Onboard LAN: 1x RJ45

Maximum Ram Capacity: 128 GB

Processor compatibility: Intel Xeon

Processor compatibility: Intel 0thers

Processor compatibility: Intel Xeon E Series

With CPU: Yes

Support Memory Type: DDR4

Number of PCI: 2

Storage Interface Type: SATA 3

Storage Interface Type: M.2 (NVMe)

Storage Interface Type: M.2(SATA)

Package: Yes

RAID Supported: YES

Application: Desktop

Chipset Manufacturer: Intel

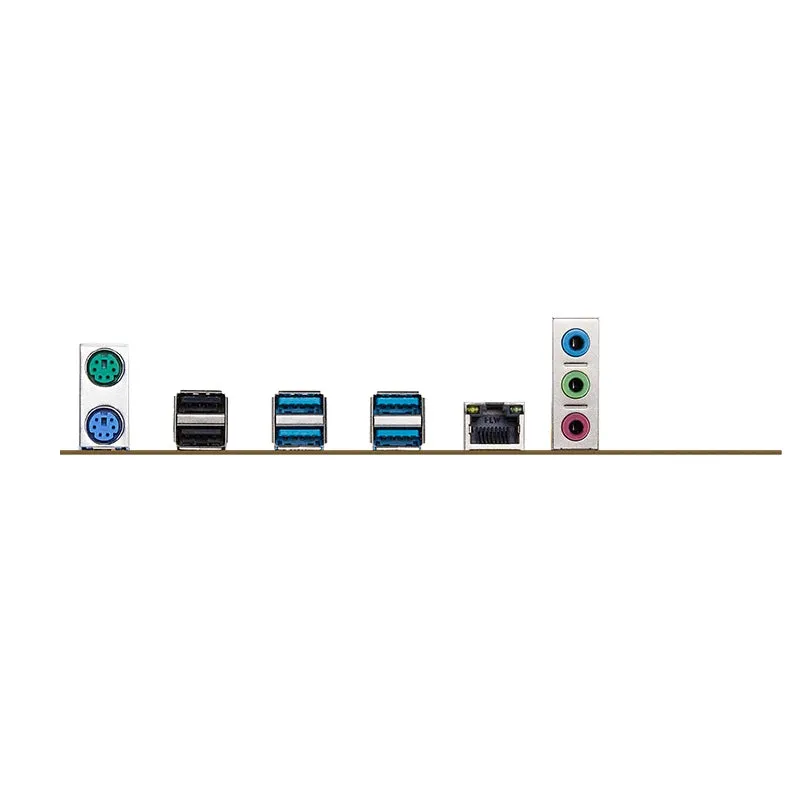

Back I/O Ports: 1x RJ45

PCI - E standards: PCI - E 3.0

Socket Type: LGA 2011-3

Hign-concerned Chemical: None

Special Function: Cooling Armor

Usage Scenario: Gaming

Usage Scenario: Audio & Video

Usage Scenario: Household

Usage Scenario: Office

Usage Scenario: DESIGN

Usage Scenario: Video Production

Usage Scenario: Industrial Computer

Usage Scenario: Workstation

Usage Scenario: Server

Usage Scenario: Mining

Usage Scenario: Scientific Computing

Usage Scenario: 3-D Modeling

Usage Scenario: Video Rendering

Usage Scenario: MaxCompute

Usage Scenario: others

Usage Scenario: HPC

Origin: Mainland China

Number Of Memory Slots: 4

Support USB Type: USB 2.0

Support USB Type: USB 3.0

Number of PCIe x 16: 1

Number of PCIe x 1: 1

Form Factor: Micro-ATX

Number of M.2: 2

Choice: yes

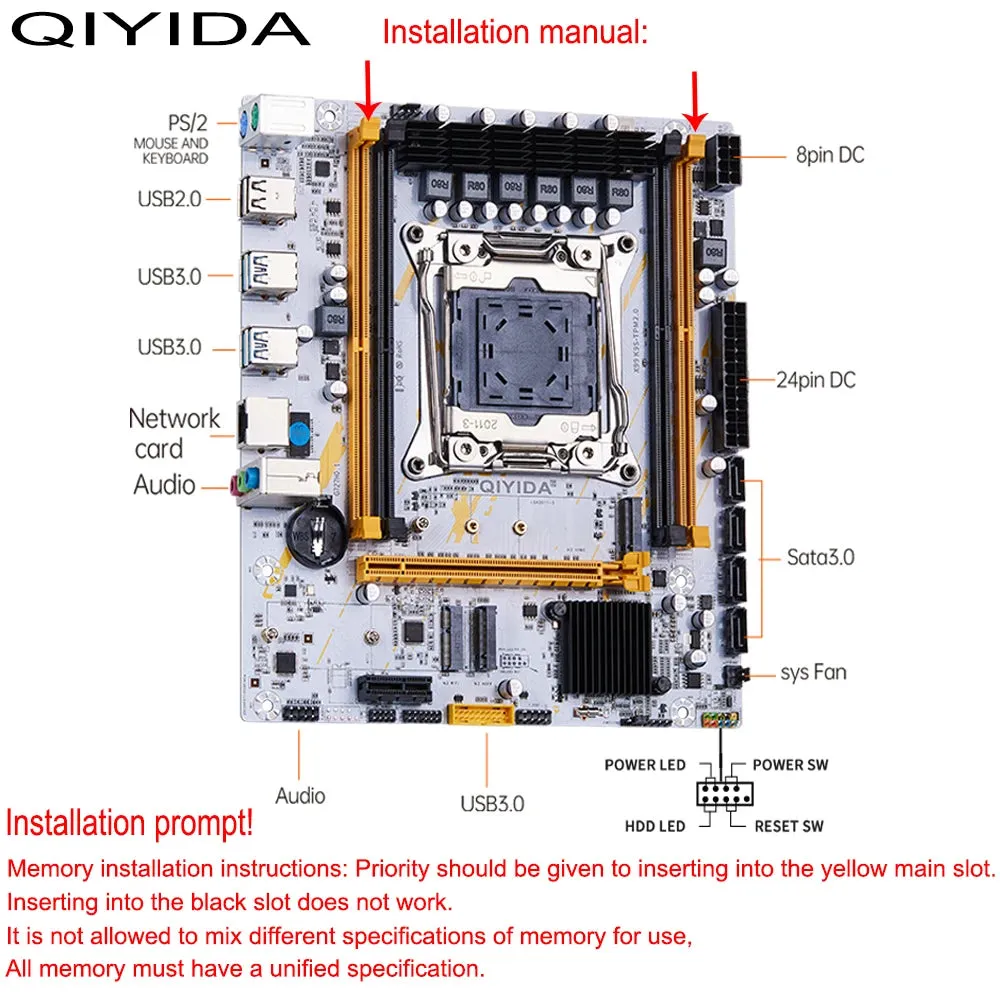

Installation prompt!

Memory installation instructions: Priority should be given to inserting into the yellow main slot.

Inserting into the black slot does not work.

It is not allowed to mix different specifications of memory for use,

All memory must have a unified specification.

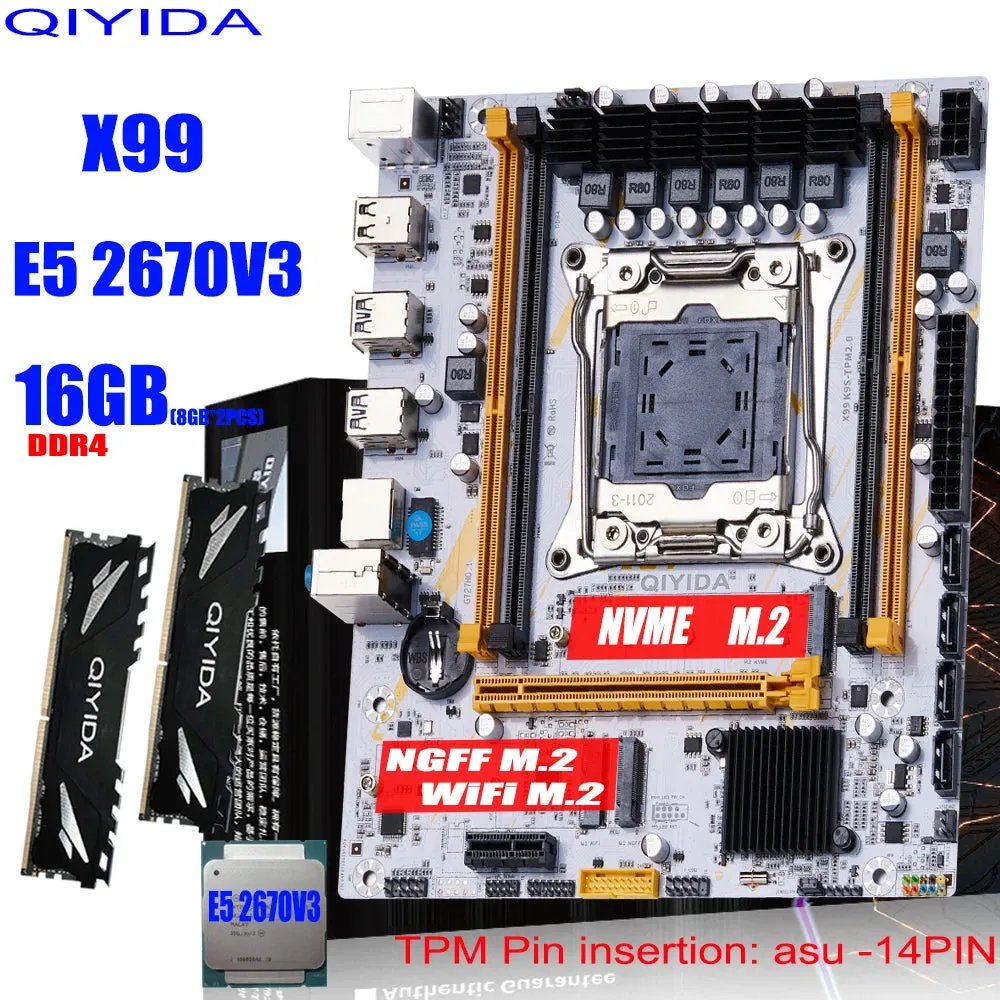

(motherboard x1 CPU x1 8GB memory x2)

CPU:

Processor Series: Xeon E5 2670V3SR1XS(12cores/24threads)

Main frequency: 2.3GHz

Socket type: LGA2011-3

3rd level cache: 30MB

Technology: 22nm

Power consumption: 120W

Memory:QIYIDA

Chip: SEC / HY/ MIC and others (ship at random)

Type: desktop memory

Frequency: DDR4 3200MHz

Capacity: 16GB (2PCS*8GB)

Note:Chipset: Intel Panther point H81/H85/B75/B85/Q75/Q87 etc.;(Random shipment) If you can't accept, please don't buy.

Note

that the new old models are sent randomly, the motherboard batches are different, and the appearance may be different.

Mind please don't buy!

Due to different production batch, motherboard might probably have slightly different design, such as different memory slots color or SATA ports position or motherboard version etc. Our aim is to gradually make it more powerful.

We will not make any further notice..

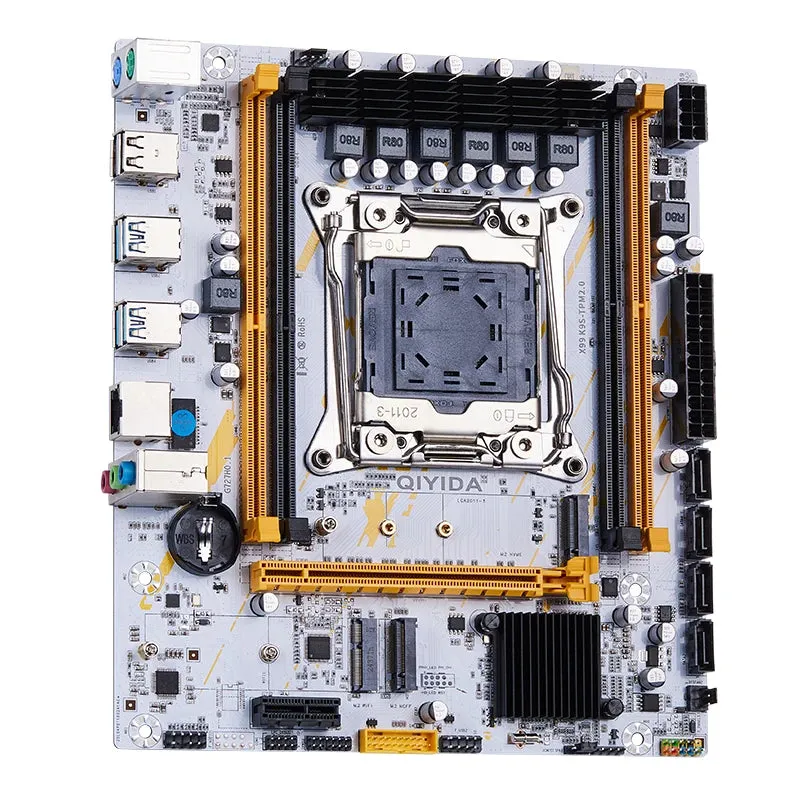

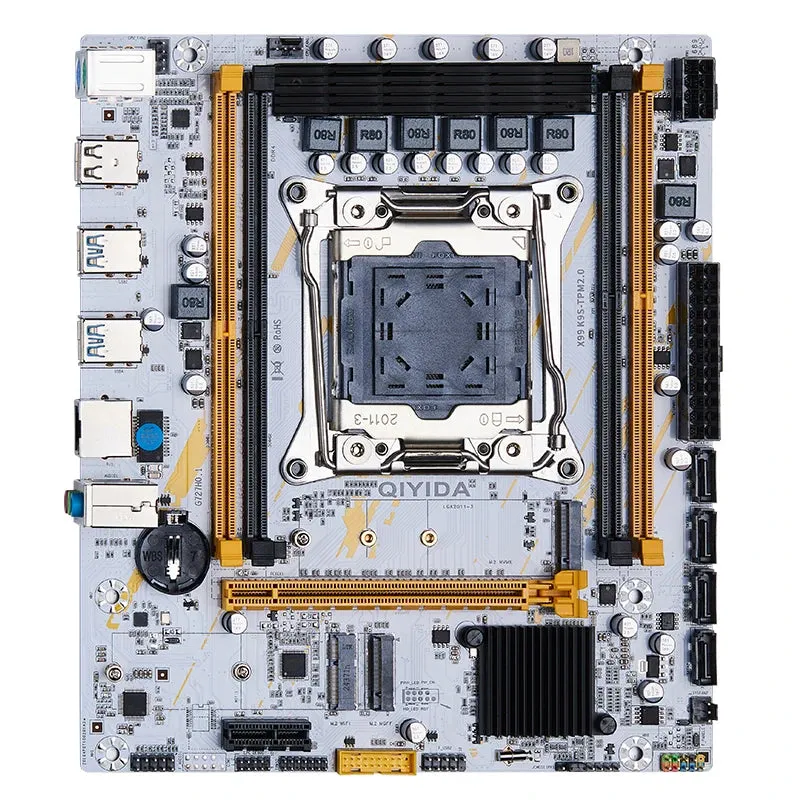

Model:QIYIDA X99 LGA2011-3

Condition: Full new

CPU socket: LGA 2011-3

Structure: M-ATX

VGA socket: PCI-E X 16

Power port: 24Pin 8pin

CPU supported:Support 2011-3 All-series CPU( Include V3, V4 series)

Memory socket: 4* DDR4

Max memory capacity: 4* 16G DDR4 2133/2400MHz/2666MHz/3200MHz

Memory type supported: non-ecc/reg ecc/ecc

Integrated video card: No

Support NVME/NGFF M.2

Chipset: Intel Panther point X99C612/H81/H85/B75/B85/Q75/Q87 etc.;(Random shipment) If you can't accept, please don't buy.

Motherboard dimension: 21.5cm*18.6cm

The battery in motherboard photos will be removed before shipping, as battery is forbidden

For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110-120). The actual temperature can be tested with a body thermometer, and the normal use does not exceed 50.

Please notice that:E5-2670V3 only top to support DDR4 2133Mhz. It means it will only shown 2133Mhz when install 3200Mhz. Please dont place order if you mind.You can read 3200mhz on CPU-Z.

Notice for motherboard combine RAM

ALL RAM needs to install in slot#1and slot#4yellow slot)priority

when 1RAM motherbard (ram needs to install slot#1or #4.)

when 2RAM motherbard (ram needs to install slot#1and #4.)

when 3RAM motherbard (ram needs to install slot#1and #4.and#2or#3.)

when 4RAM motherbard (install all slots)

The black ram slot of motherboard can't works alone.The memory needs to be inserted into the yellow main slot first.
